Fixtured Automatic Drive Heads

Fixtured Automatic Drive Heads

Carlson Engineering’s line of single-spindled automatic screwdriver head consistently lowers the average cost of operation for screw assembly processes, while also streamlining the automated assembly process. Whether it is a tight space application in the electrical components industry or a high-torque application for aerospace parts, Carlson Engineering has the automated fastening device for you.

Drive Head Type
Select...
Torque Capacity
Select...
Weight Class
Select...
Screw Head Diameter
Select...
Screw Length
Select...
Shaft Diameter
Select...
SKU: FXD-194
A right-angled fixtured automatic screwdriving drive head designed to drive small screws horizontally at up to 15 Nm of torque using a cobot or other fixtured positioning system.
Details:
Torque
Torque Capacity
9-nm
Head Diameter
Max Fastener Ø
11-mm
Screw Length
Max Fastener Length
38-mm
SKU: FXD-146

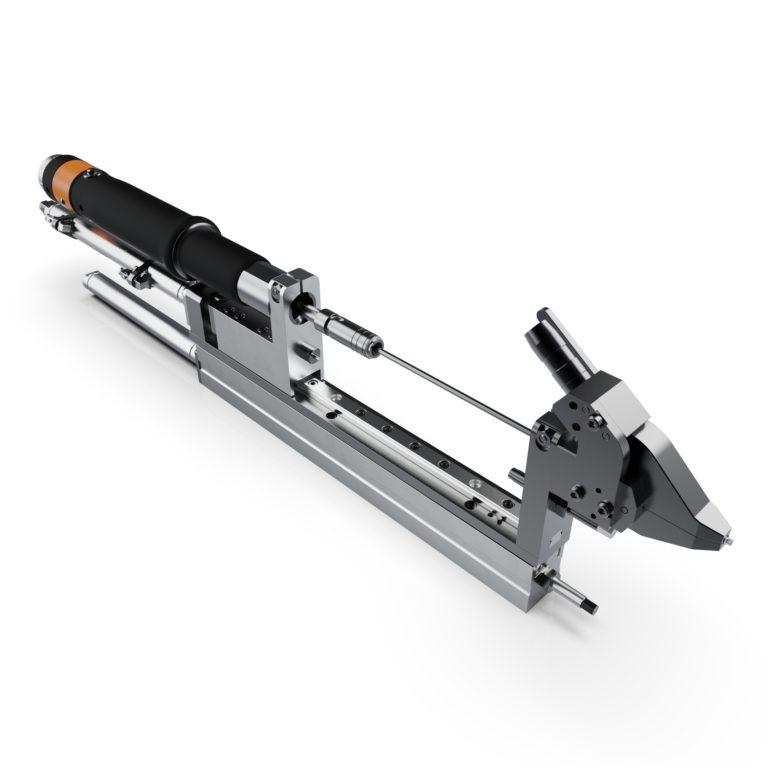

The MiniMod series of low-torque automatic screwdrivers are designed to seamlessly integrate into low-payload robotic arm assemblies, and can be fitted with most screwdriving tools available on the market today.
Details:
Torque
Torque Capacity
9-nm
Head Diameter
Max Fastener Ø
11-mm
Screw Length
Max Fastener Length
38-mm
SKU: FXD-147
The MiniMod series of low-torque automatic screwdrivers are designed to seamlessly integrate into low-payload robotic arm assemblies, and can be fitted with most screwdriving tools available on the market today.
Details:
Torque
Torque Capacity
9-nm
Head Diameter
Max Fastener Ø
11-mm
Screw Length
Max Fastener Length
38-mm
SKU: FXD-149
The MiniMod series of low-torque automatic screwdrivers are designed to seamlessly integrate into low-payload robotic arm assemblies, and can be fitted with most screwdriving tools available on the market today.
Details:
Torque
Torque Capacity
9-nm
Head Diameter
Max Fastener Ø
11-mm
Screw Length
Max Fastener Length
38-mm
SKU: FXD-150
A modular approach to automatic screwdriver applications designed to seamlessly integrate into low-payload robotic arm assemblies, and is equipped with a vacuum finder that captures the screw and advances it passed the front of the jaws to the customer product. The vacuum finder can stroke up to 100mm past the front of the jaws. This makes it ideal for for applications were there is very little clearance around the screws install location. It is intended to be used on a 2 or more axis robot or other type of positioning automation.
Details:
Torque
Torque Capacity
9-nm
Head Diameter
Max Fastener Ø
11-mm
Screw Length
Max Fastener Length
38-mm
SKU: FXD-151
A modular approach to automatic screwdriver applications designed to seamlessly integrate into low-payload robotic arm assemblies, and is equipped with a magnetic finder that captures the screw and advances it passed the front of the jaws to the customer product. The magnetic finder can stroke up to 100mm past the front of the jaws. This makes it ideal for for applications were there is very little clearance around the screws install location. It is intended to be used on a 2 or more axis robot or other type of positioning automation.
Details:
Torque
Torque Capacity
9-nm
Head Diameter
Max Fastener Ø
11-mm
Screw Length
Max Fastener Length
38-mm
SKU: FXD-140
A heavily customized multi-spindle automatic screwdriver head that offers a high torque, and can be configured with up to 6 screwdriver spindles.
Details:
Torque
Torque Capacity
100-nm
Head Diameter
Max Fastener Ø
50-mm
Screw Length
Max Fastener Length
127-mm
SKU: FXD-152
A multi-spindled automatic screwdriver head intended to simultaneously drive up to 18 screws and to work with a screwfeeder or screw presenter.
Details:
Torque
Torque Capacity
500-nm
Head Diameter
Max Fastener Ø
50-mm
Screw Length
Max Fastener Length
127-mm
SKU: FXD-158
A flexibly designed automatic screwdriver head that can be fitted with a screwdriver with an offset gearbox and allows a side to center clearance. We have been making this drive head since 1990.
Details:
Torque
Torque Capacity
25-nm
Head Diameter
Max Fastener Ø
19-mm
Screw Length
Max Fastener Length
76-mm
SKU: FXD-168
Our most light-weight multi-spindled drive head that can be fitted with up to 4 screwdriver tools at up to 100 Nm of torque, driving the fasteners to depth or to torque.
Details:
Torque
Torque Capacity
100-nm
Head Diameter
Max Fastener Ø
26-mm
Screw Length
Max Fastener Length
102-mm
