MiniDrive Handheld Automatic Drive Head

MiniDrive Handheld Automatic Drive Head

SKU: HHD-186

MiniDrive Handheld Automatic Drive Head

An ergonomically designed handheld automatic screwdriver designed for low-torque and high maneuverability handheld automatic screwdriving applications, which is intended for use with a tool stand.
Drive head's appearance may vary depending on your application's fastener type, tool type, torque specifications, available space, and more factors. Contact sales for more information.
Drive Head Details
Torque
Torque Capacity
9-nm
Drive Head
Drive Head Type
hand-held
Weight
Approx. Weight
1.67-kg
Width
Approx. Width
139-mm
Head Diameter
Max Fastener Ø
11-mm
Screw Length
Max Fastener Length
38-mm
Fastener Type
Fastener Types
screw, set-screw, nut, bolt, pin, stud, rivet
MiniDrive Handheld Automatic Drive Head

A handheld automatic screwdriver engineered to suit your industrial screwdriving automation application.

Streamlined automatic screw assembly made simple.

Carlson Engineering automated screw driving machines are designed to work with a screwfeeder or step feeder, and assist in your assembly automation fastening process by advancing the screw or screws to your product, stopping above it, and then advancing the bit driving the screw or screws to torque or depth. Carlson automatic feed screwdriver systems can be fitted with almost any brand of screwdriver on the market today.

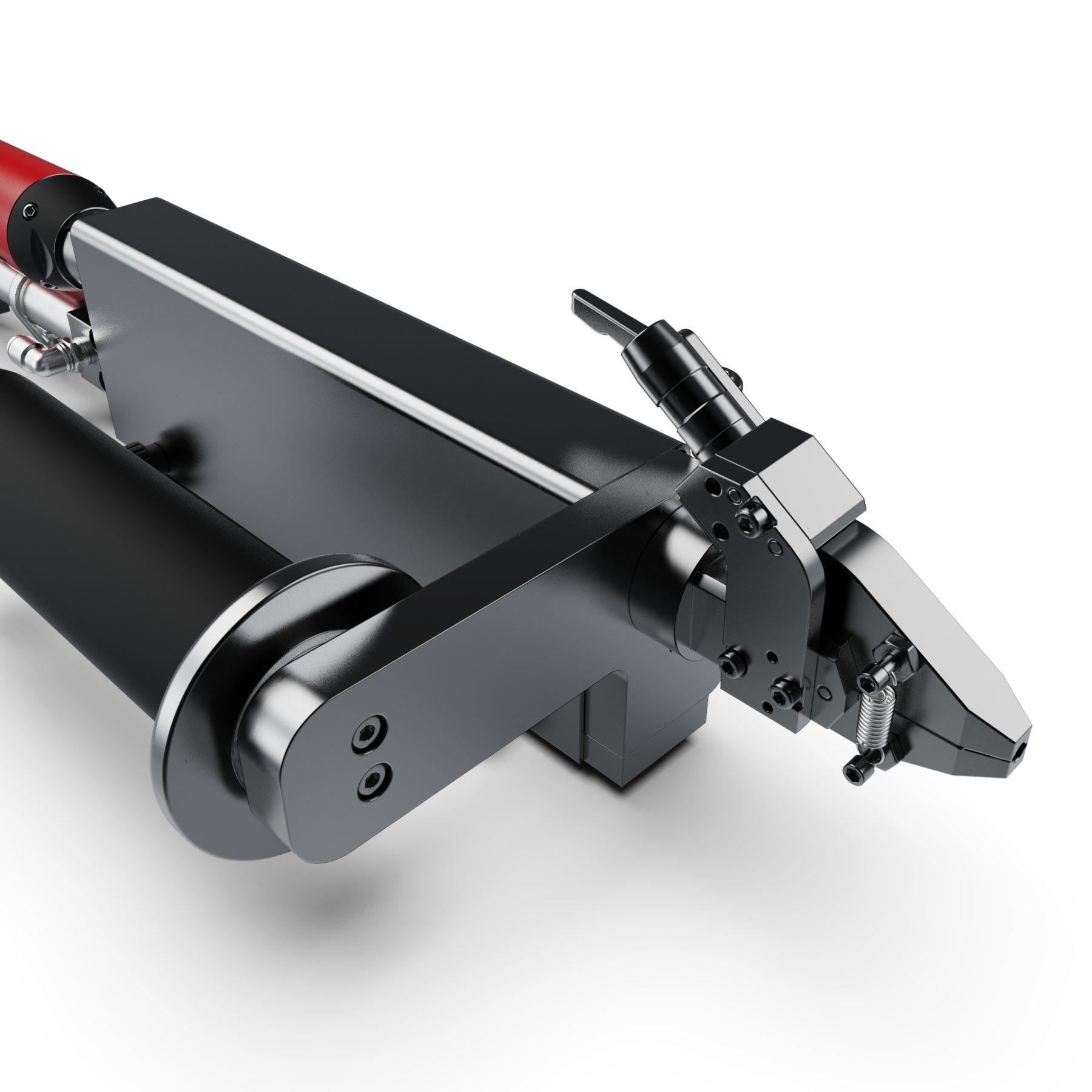

MiniDrive Automatic Handheld Screwdriver Side 4
Features

Automatic Screwdriver Head Anatomy & Features.

About the MiniDrive Handheld Automatic Drive Head automated screw assembly end effector.

Our line of high-performance, low maintenance automatic screwdrivers and screw feeder equipment consistently & effortlessly increases the efficiency of assembly automation lines, and results in lower cost of operation for automatic screwfeeding and screwdriving.

CoBot Screwdriver

Compatible with the latest developments in collaborative robot (CoBot) technology.

The MiniDrive Handheld Automatic Drive Head can be configured as a CoBot screwdriver, for HRC applications.

There are many different scenarios in which a CoBot robotic screw driving system could be employed in order to achieve an optimized assembly workflow – here are a few examples of CoBot applications in every-day manufacturing environments:

Collaborative Robot Screwdriving End Effector Carlson Engineering

Lightweight & Easy Operation

Due to the lightweight build & slim overall design, it is easy for the operator to articulate this drive head. Works very well with most any tool stand on the market.

Low-Torque Applications

Designed with smaller applications in mind, with the ability to seamlessly integrate into low-payload human-robotic collaborative arm assemblies (COBOTS) for easy driving.

Compatibility

The MiniDrive Handheld Automatic Drive Head is intended for use with a blow-feed automatic screwfeeder and can also be configured to drive bolts, pins, rivets, set-screws, and more.

Contact Sales

Inquire about the MiniDrive Handheld Automatic Drive Head:

We will get back to you within 2 business days.

Fill out the form below to the best of your ability, and a sales representative from Carlson Engineering & Manufacturing will reach out to you within 2 business days regarding your MiniDrive Handheld Automatic Drive Head quote.
Contact Name
Please enter your first and last name.
Contact Email
What email address should we send a quote to?
Contact Phone
What's the best phone number to reach you?
Business Name
What business do you represent?
Your Message:
What would you like us to know about your application?
Types 1-6

Drive Head Type Chart

Every assembly is different. That’s why we’ve engineered adaptability into our single-spindle drive heads – so that no matter the application, we have a drive head that will work for you. Each type of drive head has different qualities which make it more suited for a particular style of fastener driving.

Type 1 Drive Head Drawing

Type 1 Drive Heads

Type 1 drive heads include a dual-stage travel slide, with two travel strokes.

Type 2 Drive Head Drawing

Type 2 Drive Heads

Primarily used for pick & place presenter applications or nut-running with a vacuum finder.

Type 3 Drive Head Drawing

Type 3 Drive Heads

Type 3 drive heads are intended for driving pre-placed screws, nut running, and bottle-capping.

Type 4 Drive Head Drawing

Type 4 Drive Heads

Type 4 drive heads have a single-stage travel slide – opposite of the Type 1 drive heads.

Type 5 Drive Head Drawing

Type 5 Drive Heads

A drive head that is configured with a vacuum bit extend option, designed to work with a blow feeder.

Type 6 Drive Head Drawing

Type 6 Drive Heads

A drive head that is configured with a magnetic bit extend option, designed to work with a blow feeder.

Feedability

Feeder Compatibility Formula:

To find out whether or not your fastener can be fed using a traditional blow-feed vibratory screw feeder, use the formula below:

Screw Diagram for measuring feedability ratio

Inquire about the MiniDrive Handheld Automatic Drive Head.
