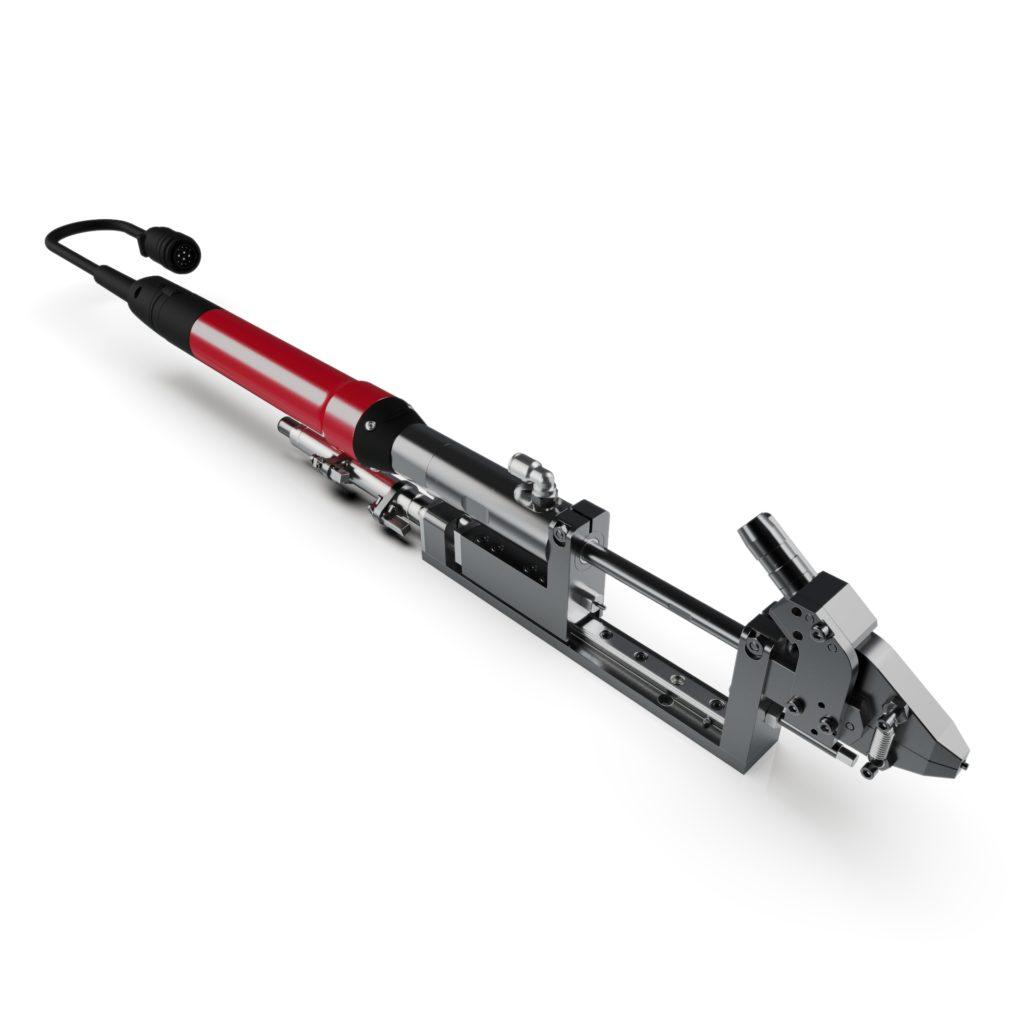

MiniMod Type 5 Vacuum Bit Extend Drive Head

MiniMod Type 5 Vacuum Bit Extend Drive Head

SKU: FXD-150

MiniMod Type 5 Vacuum Bit Extend Drive Head

A modular approach to automatic screwdriver applications designed to seamlessly integrate into low-payload robotic arm assemblies, and is equipped with a vacuum finder that captures the screw and advances it passed the front of the jaws to the customer product. The vacuum finder can stroke up to 100mm past the front of the jaws. This makes it ideal for for applications were there is very little clearance around the screws install location. It is intended to be used on a 2 or more axis robot or other type of positioning automation.
Drive head's appearance may vary depending on your application's fastener type, tool type, torque specifications, available space, and more factors. Contact sales for more information.
Drive Head Details
Torque
Torque Capacity
9-nm
Drive Head
Drive Head Type
type-5
Weight
Approx. Weight
1.67-kg
Width
Approx. Width
25-mm
Head Diameter
Max Fastener Ø
11-mm
Screw Length
Max Fastener Length
38-mm
Fastener Type
Fastener Types
screw, set-screw, nut, bolt, pin, stud, rivet
MiniMod Type 5 Vacuum Bit Extend Drive Head

An automatic screwdriver head with a vacuum finder that is engineered to suit your industrial screwdriving automation application.

Streamlined automatic screw assembly made simple.

Carlson Engineering automated screw driving machines are designed to work with a screwfeeder or step feeder, and assist in your assembly automation fastening process by advancing the screw or screws to your product, stopping above it, and then advancing the bit driving the screw or screws to torque or depth. Carlson automatic feed screwdriver systems can be fitted with almost any brand of screwdriver on the market today.

Vacuum + Travel Slide Options

As a Type 5 Drive Head, this drive head is fully-equipped with a vacuum bit extend, and can be configured as either a single-stage or a dual-stage drive head.

For Low Payload Robots

Designed with smaller applications in mind, the MiniMod Type 5 Vacuum Bit Extend Drive Head is able to seamlessly integrate into low-payload robotic arm assemblies.

Compatibility

The MiniMod Type 5 Vacuum Bit Extend Drive Head is intended for use with a blow-feed automatic screwfeeder and can also be configured to drive bolts, pins, rivets, set-screws, and more.

Contact Sales

Inquire about the MiniMod Type 5 Vacuum Bit Extend Drive Head:

We will get back to you within 2 business days.

Fill out the form below to the best of your ability, and a sales representative from Carlson Engineering & Manufacturing will reach out to you within 2 business days regarding your MiniMod Type 5 Vacuum Bit Extend Drive Head quote.
Contact Name
Please enter your first and last name.
Contact Email
What email address should we send a quote to?
Contact Phone
What's the best phone number to reach you?
Business Name
What business do you represent?
Your Message:
What would you like us to know about your application?
Types 1-6

Drive Head Type Chart

Every assembly is different. That’s why we’ve engineered adaptability into our single-spindle drive heads – so that no matter the application, we have a drive head that will work for you. Each type of drive head has different qualities which make it more suited for a particular style of fastener driving.

Type 1 Drive Head Drawing

Type 1 Drive Heads

Type 1 drive heads include a dual-stage travel slide, with two travel strokes.

Type 2 Drive Head Drawing

Type 2 Drive Heads

Primarily used for pick & place presenter applications or nut-running with a vacuum finder.

Type 3 Drive Head Drawing

Type 3 Drive Heads

Type 3 drive heads are intended for driving pre-placed screws, nut running, and bottle-capping.

Type 4 Drive Head Drawing

Type 4 Drive Heads

Type 4 drive heads have a single-stage travel slide – opposite of the Type 1 drive heads.

Type 5 Drive Head Drawing

Type 5 Drive Heads

A drive head that is configured with a vacuum bit extend option, designed to work with a blow feeder.

Type 6 Drive Head Drawing

Type 6 Drive Heads

A drive head that is configured with a magnetic bit extend option, designed to work with a blow feeder.

Feedability

Feeder Compatibility Formula:

To find out whether or not your fastener can be fed using a traditional blow-feed vibratory screw feeder, use the formula below:

Screw Diagram for measuring feedability ratio
