MiniMod Type 6 Magnetic Bit Extend Drive Head

Categories:

Fixtured Automatic Drive Heads, MiniMod, Single-Spindle Drive Heads, Type 6

MiniMod Type 6 Magnetic Bit Extend Drive Head

A modular approach to automatic screwdriver applications designed to seamlessly integrate into low-payload robotic arm assemblies, and is equipped with a magnetic finder that captures the screw and advances it passed the front of the jaws to the customer product. The magnetic finder can stroke up to 100mm past the front of the jaws. This makes it ideal for for applications were there is very little clearance around the screws install location. It is intended to be used on a 2 or more axis robot or other type of positioning automation.

Drive head's appearance may vary depending on your application's fastener type, tool type, torque specifications, available space, and more factors. Contact sales for more information.

Drive Head Details
Torque Capacity	9-nm
Drive Head Type	type-6
Approx. Weight	1.67-kg
Approx. Width	25-mm
Max Fastener Ø	11-mm
Max Fastener Length	38-mm
Fastener Types	screw, set-screw, nut, bolt, pin, stud, rivet

A magnetic pick-up automatic screwdriver head engineered to suit your industrial screwdriving automation application.

Streamlined automatic screw assembly made simple.

Carlson Engineering automated screw driving machines are designed to work with a screwfeeder or step feeder, and assist in your assembly automation fastening process by advancing the screw or screws to your product, stopping above it, and then advancing the bit driving the screw or screws to torque or depth. Carlson automatic feed screwdriver systems can be fitted with almost any brand of screwdriver on the market today.

Fixtured Drive Head Size Chart

Wondering how the MiniMod Type 6 Magnetic Bit Extend Drive Head stacks up against our other fixtured automatic drive heads?

Below is a simple diagram that visually explains representative dimensions of our different automatic drive head families. Please note that dimensions may vary from application to application, and no two applications or drive heads are exactly alike. This chart should be used as a reference guide, not an engineering tool.

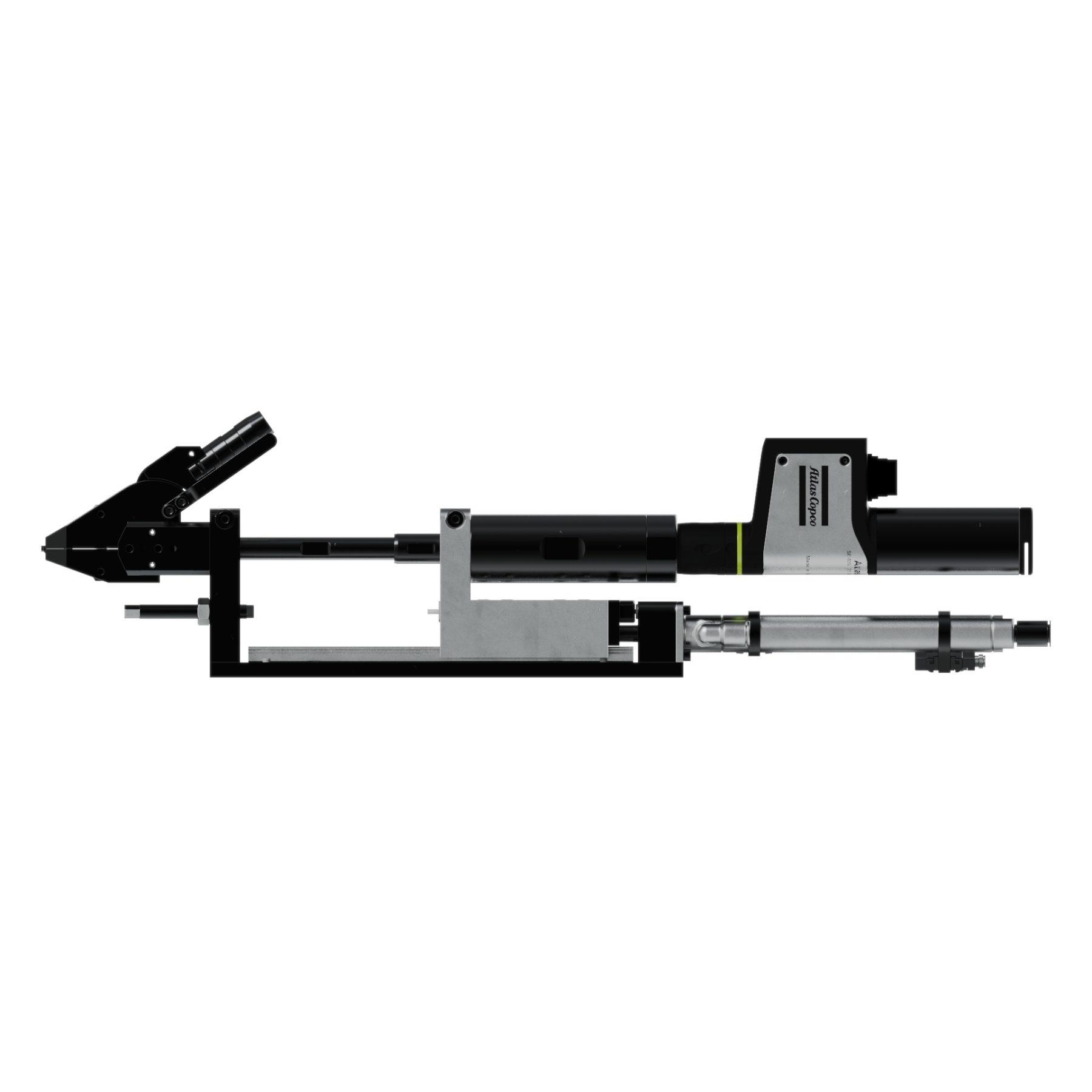

MiniMod Mini Automatic Screwdriver Head Type 6 Side 4

Automatic Screwdriver Head Anatomy & Features.

About the MiniMod Type 6 Magnetic Bit Extend Drive Head automated screw assembly end effector.

Our line of high-performance, low maintenance automatic screwdrivers and screw feeder equipment consistently & effortlessly increases the efficiency of assembly automation lines, and results in lower cost of operation for automatic screwfeeding and screwdriving.

Magnetic + Travel Slide Options

As a Type 6 Drive Head, this drive head is fully-equipped with a magnetic bit extend option, and can be configured as either a single-stage or a dual-stage drive head.

For Low Payload Robots

Designed with smaller applications in mind, the MiniMod Type 6 Magnetic Bit Extend Drive Head is able to seamlessly integrate into low-payload robotic arm assemblies.

Compatibility

The MiniMod Type 6 Magnetic Bit Extend Drive Head is intended for use with a blow-feed automatic screwfeeder and can also be configured to drive bolts, pins, rivets, set-screws, and more.

Inquire about the MiniMod Type 6 Magnetic Bit Extend Drive Head:

We will get back to you within 2 business days.

Fill out the form below to the best of your ability, and a sales representative from Carlson Engineering & Manufacturing will reach out to you within 2 business days regarding your MiniMod Type 6 Magnetic Bit Extend Drive Head quote.
