Right Angle Handheld MiniDrive Drive Head

Categories:

Hand-Held Automatic Drive Heads, MiniDrive

Right Angle Handheld MiniDrive Drive Head

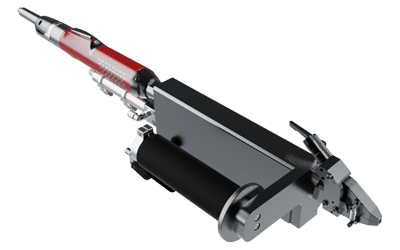

An ergonomically designed right-angle handheld automatic screwdriver designed for low-torque and high maneuverability automatic screwdriving. Intended for use with a tool stand.

Drive head's appearance may vary depending on your application's fastener type, tool type, torque specifications, available space, and more factors. Contact sales for more information.

Drive Head Details
Torque Capacity	9-nm
Drive Head Type	hand-held, right-angle
Approx. Weight	1.8-kg
Approx. Width	139-mm
Max Fastener Ø	11-mm
Max Fastener Length	38-mm
Fastener Types	screw, set-screw, nut, bolt, pin, stud, rivet

A handheld automatic screwdriver engineered to suit your industrial screwdriving automation application.

Streamlined automatic screw assembly made simple.

Carlson Engineering automated screw driving machines are designed to work with a screwfeeder or step feeder, and assist in your assembly automation fastening process by advancing the screw or screws to your product, stopping above it, and then advancing the bit driving the screw or screws to torque or depth. Carlson automatic feed screwdriver systems can be fitted with almost any brand of screwdriver on the market today.

Handheld Drive Head Size Chart

Wondering how the Right Angle Handheld MiniDrive Drive Head stacks up against our other automatic handheld drive heads?

Below is a simple diagram that visually explains representative dimensions of our different automatic drive head families. Please note that dimensions may vary from application to application, and no two applications or drive heads are exactly alike. This chart should be used as a reference guide, not an engineering tool.

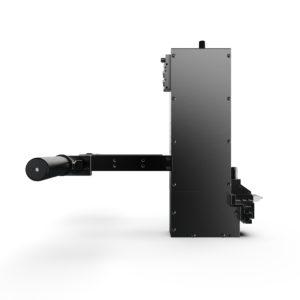

MiniDrive Right Angle Automatic Screwdriver Side 4

Automatic Screwdriver Head Anatomy & Features.

About the Right Angle Handheld MiniDrive Drive Head automated screw assembly end effector.

Our line of high-performance, low maintenance automatic screwdrivers and screw feeder equipment consistently & effortlessly increases the efficiency of assembly automation lines, and results in lower cost of operation for automatic screwfeeding and screwdriving.

Lightweight & Easy Operation

Due to the lightweight build & slim overall design, it is easy for the operator to articulate this drive head. Works very well with most any tool stand on the market.

Right Angle/Horizontal Driving

As a right-angle handheld drive head, the Right Angle Handheld MiniDrive Drive Head is able to drive screws horizontally into recesses that are typically considered out of reach by traditionally vertical drive head models.

Compatibility

The Right Angle Handheld MiniDrive Drive Head is intended for use with a blow-feed automatic screwfeeder and can also be configured to drive bolts, pins, rivets, set-screws, and more.

Inquire about the Right Angle Handheld MiniDrive Drive Head:

We will get back to you within 2 business days.

Fill out the form below to the best of your ability, and a sales representative from Carlson Engineering & Manufacturing will reach out to you within 2 business days regarding your Right Angle Handheld MiniDrive Drive Head quote.
