TwinSlim Type 1 Drive Head

Categories:

Fixtured Automatic Drive Heads, Single-Spindle Drive Heads, TwinSlim, Type 1

TwinSlim Type 1 Drive Head

A lightweight but powerful dual-stage single-spindle automatic screwdriver head with independent jaw & bit strokes for easy access to difficult areas.

Drive head's appearance may vary depending on your application's fastener type, tool type, torque specifications, available space, and more factors. Contact sales for more information.

Drive Head Details
Torque Capacity	100-nm
Drive Head Type	type-1
Approx. Weight	14-kg
Approx. Width	76-mm
Max Fastener Ø	26-mm
Max Fastener Length	102-mm
Fastener Types	screw, set-screw, nut, bolt, pin, stud, rivet

A dual-stage automatic screwdriver head that is engineered to suit your industrial screwdriving automation application.

Streamlined automatic screw assembly made simple.

Carlson Engineering automated screw driving machines are designed to work with a screwfeeder or step feeder, and assist in your assembly automation fastening process by advancing the screw or screws to your product, stopping above it, and then advancing the bit driving the screw or screws to torque or depth. Carlson automatic feed screwdriver systems can be fitted with almost any brand of screwdriver on the market today.

Fixtured Drive Head Size Chart

Wondering how the TwinSlim Type 1 Drive Head stacks up against our other fixtured automatic drive heads?

Below is a simple diagram that visually explains representative dimensions of our different automatic drive head families. Please note that dimensions may vary from application to application, and no two applications or drive heads are exactly alike. This chart should be used as a reference guide, not an engineering tool.

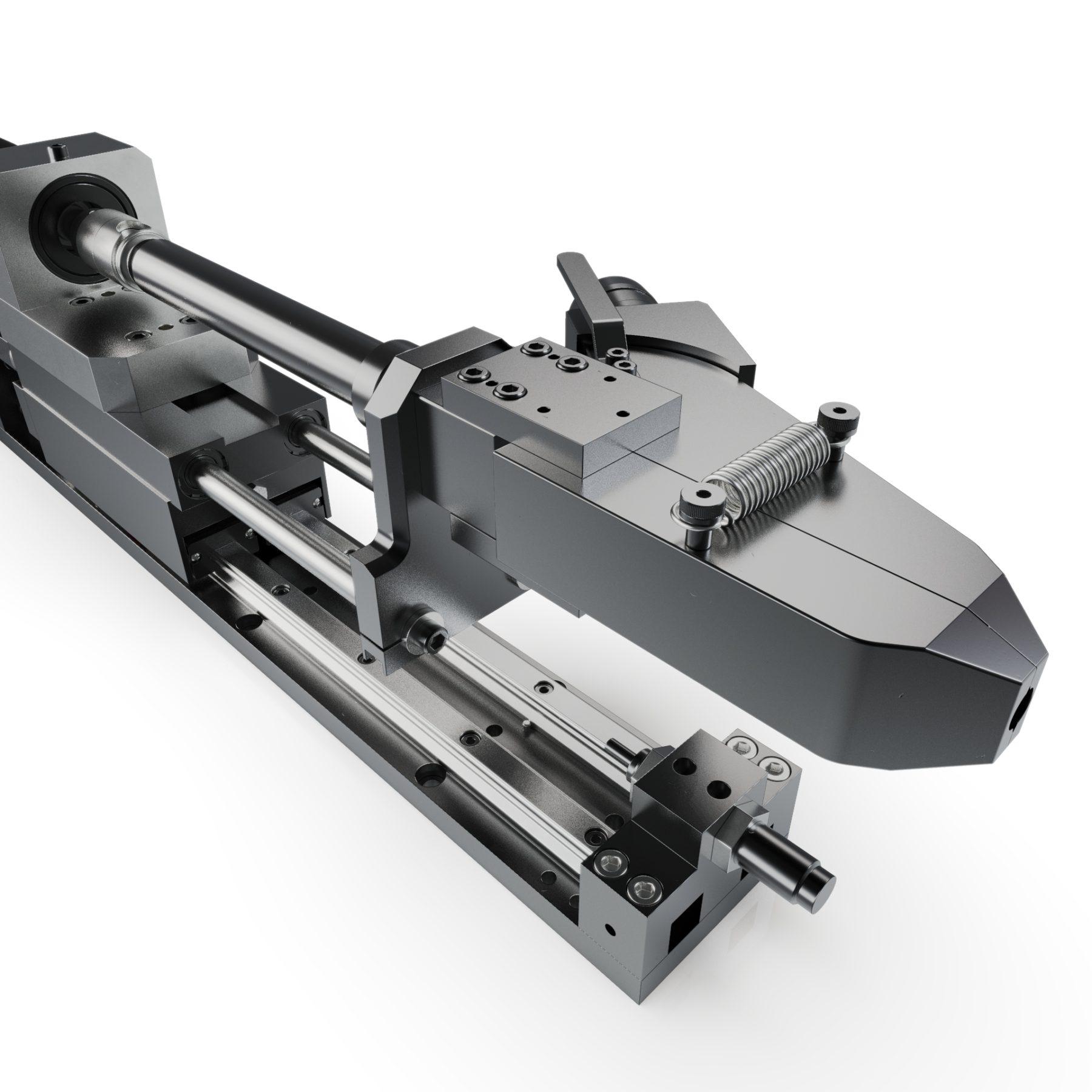

TwinSlim Automatic SCrewdriver Type 1 Side 4

Automatic Screwdriver Head Anatomy & Features.

About the TwinSlim Type 1 Drive Head automated screw assembly end effector.

Our line of high-performance, low maintenance automatic screwdrivers and screw feeder equipment consistently & effortlessly increases the efficiency of assembly automation lines, and results in lower cost of operation for automatic screwfeeding and screwdriving.

Dual-Stage Screwdriving

As a Type 1, this drive head is dual-stage device with 2 independently operating travel slides & corresponding Jaw and Bit strokes, making hard to reach areas accessible.

Quick Bit Change

Removing the bit of the TwinSlim Drive Head is a simple 3 step process with our quick bit change technology – allowing the operator ease of access to changing the bit!

Compatibility

The TwinSlim Type 1 Drive Head is intended for use with a blow-feed automatic screwfeeder and can also be configured to drive bolts, pins, rivets, set-screws, and more.

Inquire about the TwinSlim Type 1 Drive Head:

We will get back to you within 2 business days.

Fill out the form below to the best of your ability, and a sales representative from Carlson Engineering & Manufacturing will reach out to you within 2 business days regarding your TwinSlim Type 1 Drive Head quote.
