S3.5 Screw Step Feeder

An electrically motorized 3.5″ (90mm) screw step feeder suitable for feeding or presenting fasteners to a drive head or screw dispenser assembly.
Make Inquiry
Literature
Step Feeder's appearance may vary depending on your application's fastener type, tool type, torque specifications, available space, and more factors. Contact sales for more information.
Feeder Details
Step Size
Step Size
89-mm
Height
Enclosure:
No-Enclosure
Step Size
Hopper Options
No-Hopper
Head Diameter
Max. Screw Ø
11-mm
Screw Length
Max. Screw Length
38-mm
Head Dia
Max. Shaft Ø
5-mm
Fastener Type
Fastener Types
Screw, Set-Screw, Nut, Bolt, Pin, Stud, Rivet
About the feeder

An automatic screw step feeder design engineered to suit your specific application.

The Carlson Engineering S3.5 Screw Step Feeder is designed to be a low-maintenance, durable, and reliable system you can count on for years.

To prevent tampering, we’ve engineered our automatic step feeder systems so that there are no mechanical adjustments. All parts of our step feeder mechanism are machined to the specifications of your particular fastener, and dowel pinned in place. This make maintenance of our stepper feeder systems easy: the escapement can be taken apart for cleaning, and it will go back together precisely as originally manufactured.

Our track level sensor is custom made for the Carlson escapement, ensuring superior accuracy & fastener compatibility. This sensor mounts to the escapement track and requires no positional adjustment, like the rest of our tooling. The sensor’s sensitivity is preset from the factory, and in most cases does not require adjustment.

Reliability

Carlson Escapements are engineered to prevent screws from getting stuck.

Streamlined automatic screw assembly made simple.

We have engineered a 3 Step Fastener Alignment Verification system into each of our automated screwfeeders & screw presenters.

One of the most frustrating challenges caused by modern vibratory feeder bowls is the frequency of fastener jams. To solve this, we have engineered a unique 3-step fastener alignment verification process into our automatic screw feeder machines.

Error Proof Screw Feeders - Sorting Jet

Step 1: Sorting Air Jet

The first step in our 3-step fastener verification is our Non-Adjustable Sorting Air jet – a highly pressurized stream of air that ejects misaligned fasteners from the track - our first line of defense.

Error Proof Screw Feeders - Qualifying Track

Step 2: Qualifying Track Cover:​​

The second step is a Non-Adjustable Bowl Track Qualifying Cover, which prevents misaligned fasteners from passing underneath its clearance and moving down the escapement track in the first place.

Error Proof Screw Feeders - Optic Sensor

Step 3: Optic Sensor​

When the optic sensor notices that the escapement is full of screws, the step feeder's screw elevator will stop lifting fasteners to the track. This prevents back pressure and jams in the feeder tray.

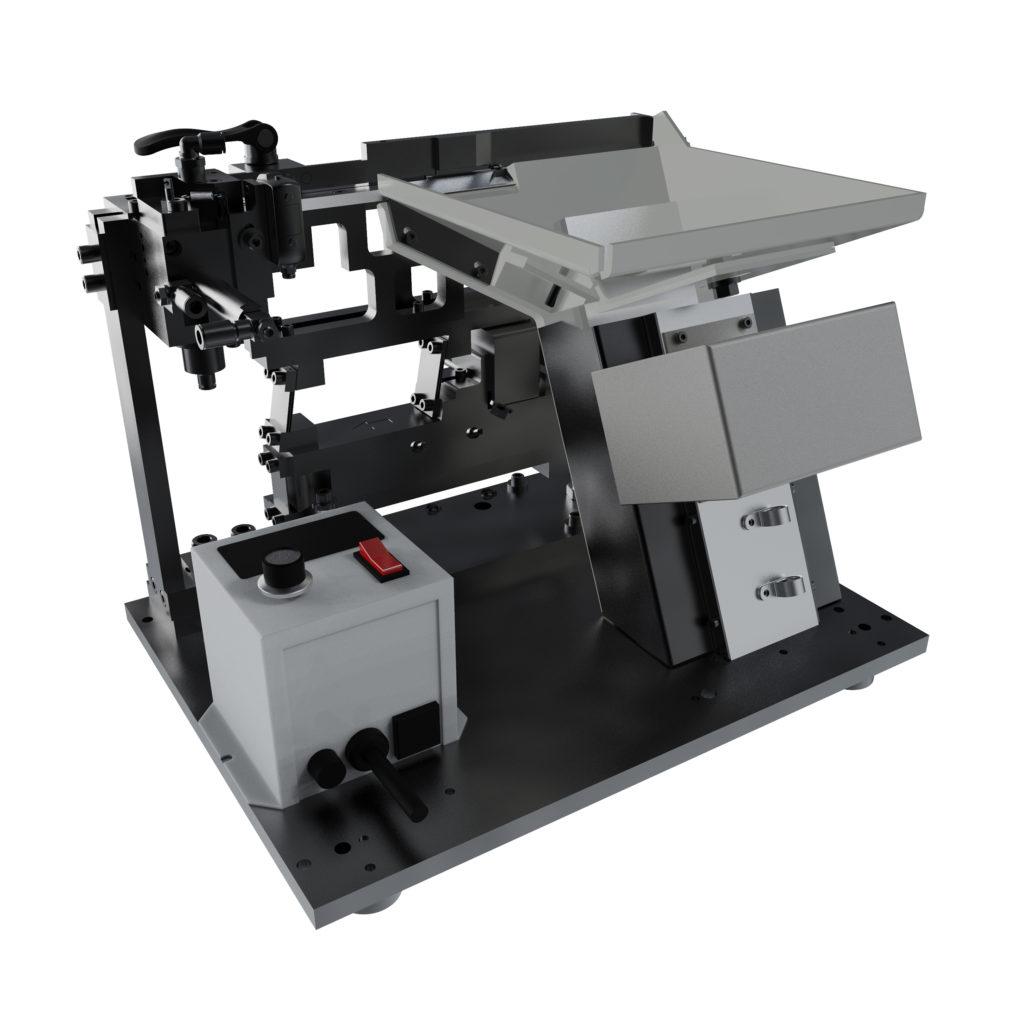

S35 Automatic Step Feeder Screw Feeding Carlson Engineering Side 2
Features

Step Feeder System Anatomy & Features

About the S3.5 Screw Step Feeder's design, features, and applications.

The S3.5 Series of step feeder designs come complete with hardened tool steel and stainless steel escapement. Optic controls switch the electric step elevator on and off to prevent excessive wear and over-pressurization of escapement and tooling areas as seen on other manufacturer’s systems.

Featuring an electrically motorized screw elevator assembly that lifts fasteners from the tray into the track, Carlson Engineering step feeders are a more silent option for feeding fasteners. The low vibration also helps to reduce the uneven coating distribution of fasteners coated with loctite or other substrates that are sometimes seen in vibratory bowl feeding.

  • Ideal method for silently feeding/presenting coated fasteners
  • Resistant to wear & tear damage
  • Standard polyethylene bowl coating
  • Optional hard anodize or urethane bowl coating
  • 3-Step fastener alignment verification prevents jams
  • Hardened & heat-treated durable tool steel composition
  • Less pinch points & no mechanical adjustments for enhanced safety.

3.5" (89 mm) Step Size

Carlson Engineering's S3.5 Series Stepfeeders are equipped with an electric screw elevator, which lifts screws up from the tray and into the escapement track to be either fed or presented to a drive head. Step feeders provide a more gentle handling of fasteners, and is ideal for coated fasteners.

Blow Feeding Fastener Delivery

The S3.5 Screw Step Feeder is a blow-feeder, which means that it uses a system powered by pressurized air to blow screws through a tube and down into an automatic drive head, remote presenter, or screw dispenser.

Contact Sales

Inquire about the S3.5 Screw Step Feeder:

We will get back to you within 2 business days.

Fill out the form below to the best of your ability, and a sales representative from Carlson Engineering & Manufacturing will reach out to you within 2 business days regarding your S3.5 Screw Step Feeder quote.
Contact Name
Please enter your first and last name.
Contact Email
What email address should we send a quote to?
Contact Phone
What's the best phone number to reach you?
Business Name
What business do you represent?
Your Message:
What would you like us to know about your application?
Quote

Use Our Automated Fastening Product Configurator.

Enter your fastener & application specifications into our product configurator to learn more about the automation products that will work for your specific application.

Configure Quote

Join our email list.

Stay up to date on company news, industry thought leadership, new product releases, and more. Sign up now to receive direct email marketing tailored to your industry.

Industry
Our Company

Carlson Engineering has been designing and manufacturing cutting edge automatic screwdriver and screw feeder systems for over 30 years.

Navigate
Screw Driving Systems
Screw Feeding
Facebook-f Linkedin-in Youtube Twitter
Types 1-6

Drive Head Type Chart

Every assembly is different. That’s why we’ve engineered adaptability into our single-spindle drive heads – so that no matter the application, we have a drive head that will work for you. Each type of drive head has different qualities which make it more suited for a particular style of fastener driving.

Type 1 Drive Head Drawing

Type 1 Drive Heads

Type 1 drive heads include a dual-stage travel slide, with two travel strokes.

Type 2 Drive Head Drawing

Type 2 Drive Heads

Primarily used for pick & place presenter applications or nut-running with a vacuum finder.

Type 3 Drive Head Drawing

Type 3 Drive Heads

Type 3 drive heads are intended for driving pre-placed screws, nut running, and bottle-capping.

Type 4 Drive Head Drawing

Type 4 Drive Heads

Type 4 drive heads have a single-stage travel slide – opposite of the Type 1 drive heads.

Type 5 Drive Head Drawing

Type 5 Drive Heads

A drive head that is configured with a vacuum bit extend option, designed to work with a blow feeder.

Type 6 Drive Head Drawing

Type 6 Drive Heads

A drive head that is configured with a magnetic bit extend option, designed to work with a blow feeder.

Feedability

Feeder Compatibility Formula:

To find out whether or not your fastener can be fed using a traditional blow-feed vibratory screw feeder, use the formula below:

Screw Diagram for measuring feedability ratio

Inquire about the S3.5 Screw Step Feeder.
