XMod Type 6 Drive Head

Categories:

Fixtured Automatic Drive Heads, Single-Spindle Drive Heads, Type 6, XMod

XMod Type 6 Drive Head

An XMod Drive Head that’s equipped with a magnetic finder that captures screws and advances them to the part. Up to 100mm magnetic stroke. Ideal for low-clearance applications.

Drive head's appearance may vary depending on your application's fastener type, tool type, torque specifications, available space, and more factors. Contact sales for more information.

Drive Head Details
Torque Capacity	25-nm
Drive Head Type	type-6
Approx. Weight	5.4-kg
Approx. Width	40-mm
Max Fastener Ø	19-mm
Max Fastener Length	76-mm
Fastener Types	screw, set-screw, nut, bolt, pin, stud, rivet

A magnetic pick-up automatic screwdriver head engineered to suit your industrial screwdriving automation application.

Streamlined automatic screw assembly made simple.

Carlson Engineering automated screw driving machines are designed to work with a screwfeeder or step feeder, and assist in your assembly automation fastening process by advancing the screw or screws to your product, stopping above it, and then advancing the bit driving the screw or screws to torque or depth. Carlson automatic feed screwdriver systems can be fitted with almost any brand of screwdriver on the market today.

Fixtured Drive Head Size Chart

Wondering how the XMod Type 6 Drive Head stacks up against our other fixtured automatic drive heads?

Below is a simple diagram that visually explains representative dimensions of our different automatic drive head families. Please note that dimensions may vary from application to application, and no two applications or drive heads are exactly alike. This chart should be used as a reference guide, not an engineering tool.

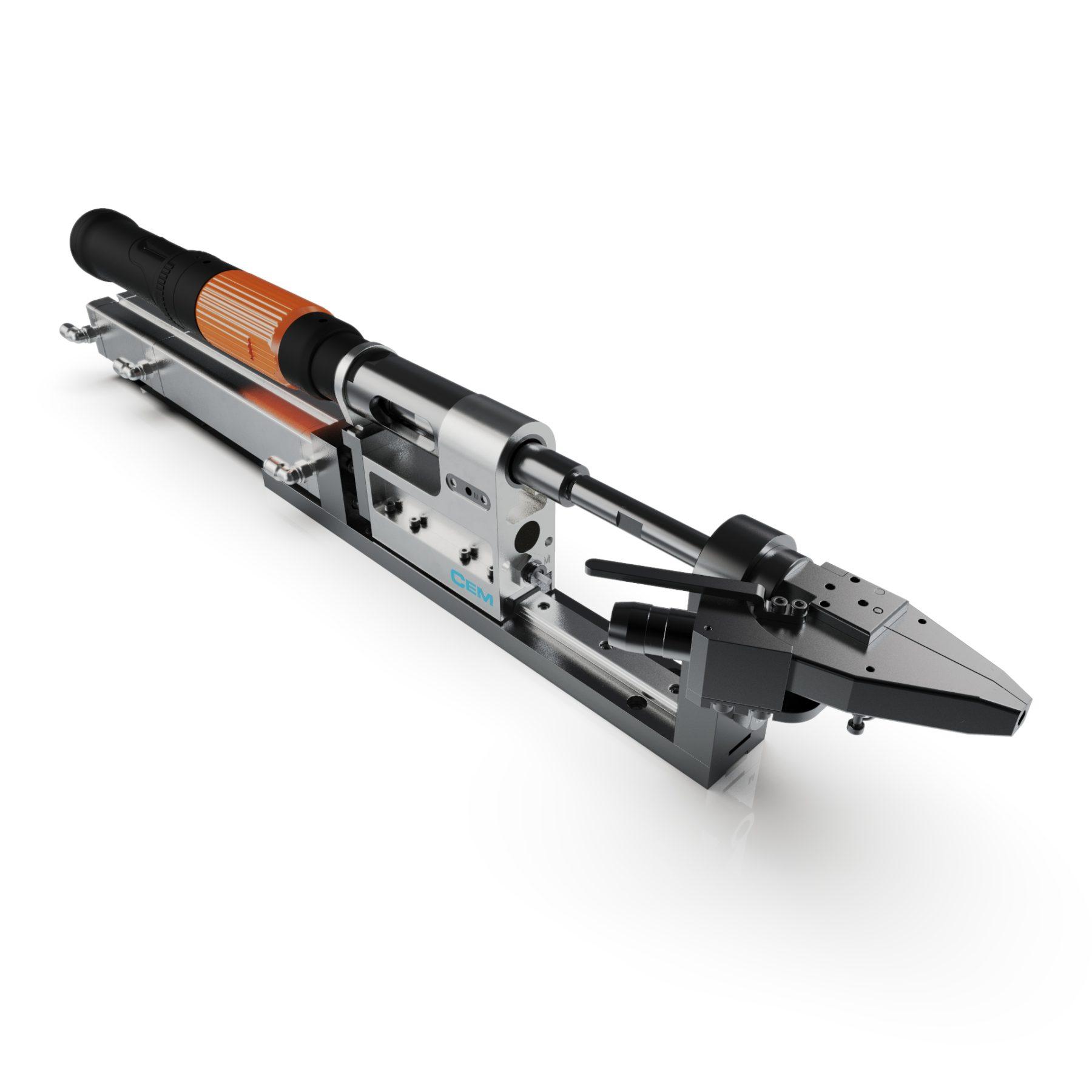

XMod Automatic Screwdriver Head Carlson Engineering Type 6 Side 4

Automatic Screwdriver Head Anatomy & Features.

About the XMod Type 6 Drive Head automated screw assembly end effector.

Our line of high-performance, low maintenance automatic screwdrivers and screw feeder equipment consistently & effortlessly increases the efficiency of assembly automation lines, and results in lower cost of operation for automatic screwfeeding and screwdriving.

Magnetic + Travel Slide Options

As a Type 6 Drive Head, this drive head is fully-equipped with a magnetic bit extend option, and can be configured as either a single-stage or a dual-stage drive head.

A Modular Approach

Engineered with the individual needs of each different assembly, the XMod Type 6 Drive Head is a highly-modular design that can be configured in a number of ways to achieve a screwdriving goal.

Compatibility

The XMod Type 6 Drive Head is intended for use with a blow-feed automatic screwfeeder and can also be configured to drive bolts, pins, rivets, set-screws, and more.

Inquire about the XMod Type 6 Drive Head:

We will get back to you within 2 business days.

Fill out the form below to the best of your ability, and a sales representative from Carlson Engineering & Manufacturing will reach out to you within 2 business days regarding your XMod Type 6 Drive Head quote.
